19 Inch Cold Roll Steel Drawer Type Slidable Rack-Mount Fiber Optic Distribution Frame ODF Fiber Optic Patch Panel

Basic Info

Model NO.	Fiber patch panel, wall mount, drawer type, rack m
Application	Fiber Distribution Frame, Network Equipment, CATV, LAN, Wan, FTTH
Light Source TYPE	Passive Optical
Brand	OEM
Length	Customized
Certification	RoHS, UL, CE, ISO9001
Interface Type	Sc/FC/LC/St
Installation	1 U 19" Rack Mounted
Accessories	Splicing Tray,Spool,Screw,Sleeve
Package	1 PCS /Box
Fiber Count	12/24/48 or Customized
Type	Sliding Fixed
Warranty	2 Year
Transport Package	PE Bag+Carton
Specification	1U/2U/3U
Trademark	OEM
Origin	China
HS Code	8536700000

Product Description

SC LC Interface 24 Port Drawer Type Fiber Terminal Box 19-Inch Rack Mounted Fiber Optic Patch Panel

Description Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable's individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application.



FeaturesHigh quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust. High strength sheet metal, long-term using is not easy to deformation. The edges of metal parts are designed with rounded corners to avoid damage to cables. The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.ApplicationSliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.It's used widely in local end main cable net of fiber optic communication area. And suitable for the FTTB, FTTH system.Characteristics1. Provide a protective connection between fiber optic cables and distribution pigtails2. Insulate the metal component of the optical cable from the end shell of the optical cable and can easily lead to ground.3. Provide space for the installation of optical cable terminals and storage of the remaining fiber,which is convenient for installation and operation.4. The box with sufficient impact strength is fixed to facilliate installation in different occasions.5. Various installation methods such as wall-mounted installation or direct placement in the channel can be selected.



EnvironmentThe operating and storage temperature: - 45 ~ + 80 ºC.Tolerable humidity: <95% The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV),which is tested in 1 minute without breakdown and no flashover.

Specifications

Fiber Capacity of panel	12-144 core(12 24 48 port usually)
Panel Connector	SC LC ST FC
Type	Sliding Fixed
Dimension	19'' 1U/2U/3U/4U...
Material	Cold Rolled Steel or Aluminum
Storage Temperature	-45~+65ºC
Thickness	1.0 1.2 mm
Accessories	Cable ties, mounting ear screws, and spiral wrap tube

Input Channel Number	Input Optical Fiber Type	Output Channel Number	Output Optical Fiber Type
1=1 channel2=2 channel	0=250um bare fiber1=900um loose tube2=2.0mmcable3=3.0mmcable	02=2 channel04=4 channel08=8 channel16=16 channel32=32 channel64=64 channel	0=250um bare fiber1=900um loose tube2=2.0mmcable3=3.0mmcable

Connector Type In/Out	Fiber Length	Package Type
0=no connector1=FC/PC2=FC/APC3=SC/PC4=SC/APC5=LC/PC6=LC/APCS=Specify	10=1.0 meter15=1.5 Meter20=2.0 Meter30=3.0 Meter	1=S.S Tube 12=S.S Tube 23=S.S Tube 34=ABS Box5=LGX Box6=19 InchRack

Product Photos

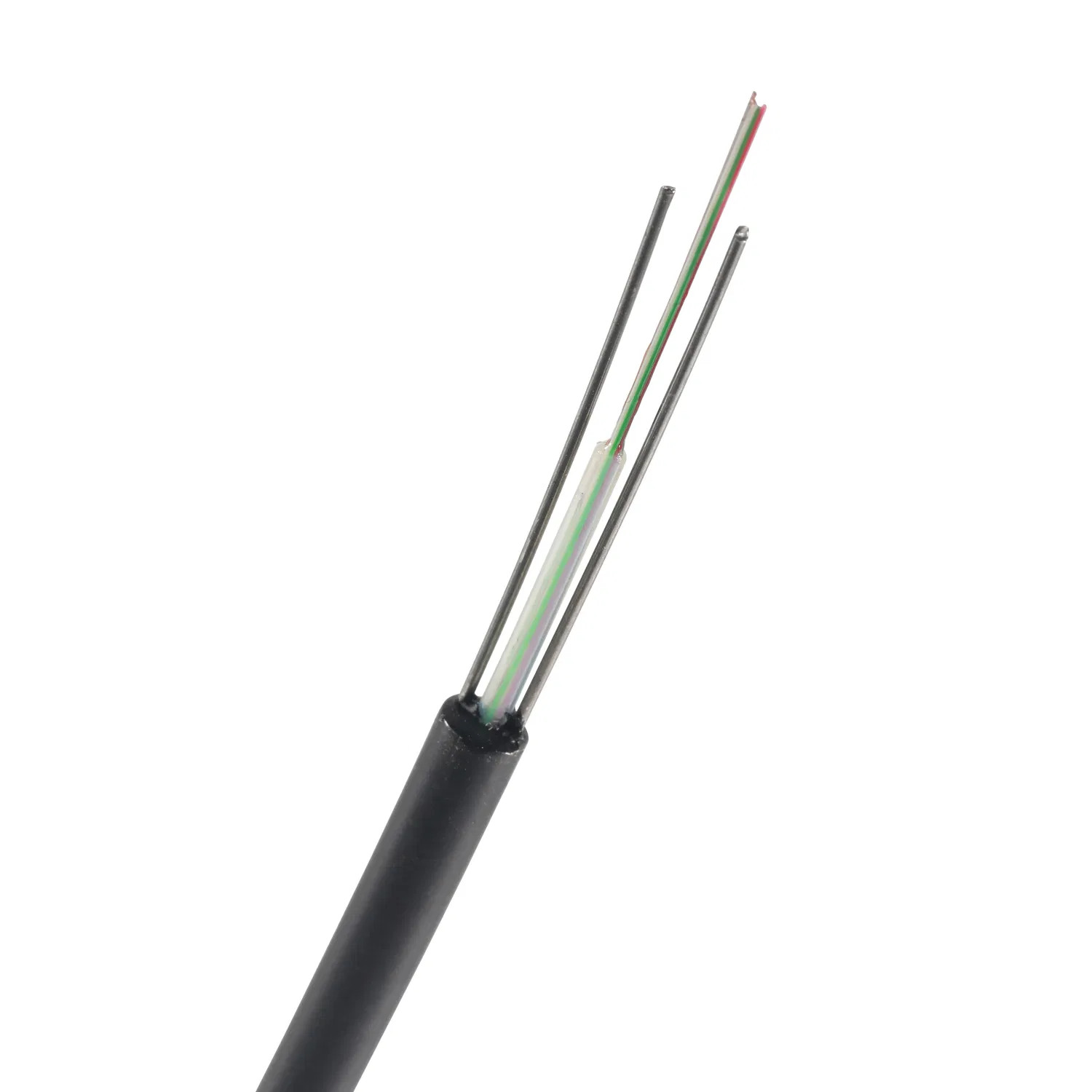

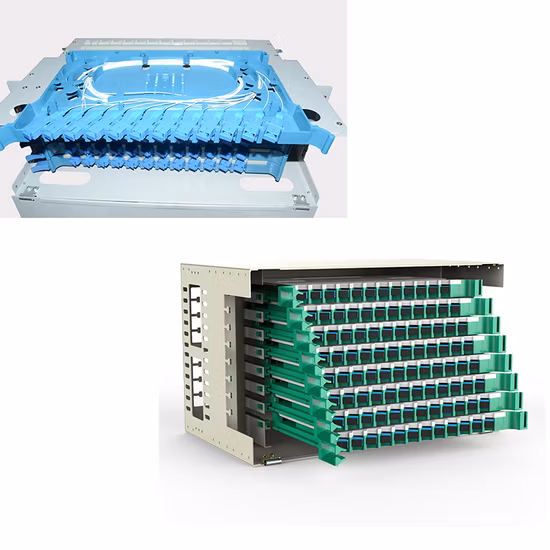

Other Related Products
