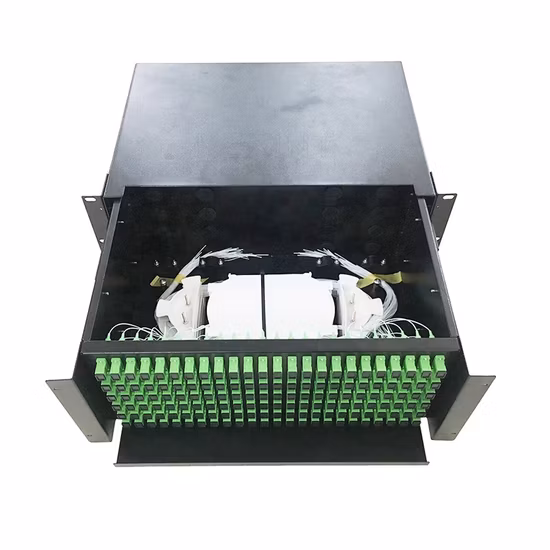

2014 New Arrival Fiber Optic Patch Panel

Basic Info

Model NO.	FOD-S1A
Product	Optical Fiber Distribution Box
Wiring Devices	ODF
Name	12-96 Core Fiber Optic Patch Panel
Capacity	12-96 Fiber
Material	Steel
Color	Black or White or Customer Request
Brand	Softel or OEM
Delivery	7 Working Days
Application	Hfc, FTTX
Adaptor Type	FC, Sc, St, LC
Transport Package	Paper Box
Specification	size
Trademark	Softel
Origin	China
HS Code	85176229
Production Capacity	1000 Set Per Week

Product Description

2014 New Arrival fiber optic patch panel

Descriptions:

The device, SLIDING-FOD-C, is designed as a drawer which could be pulled out and pushed in easily for convenient operation; 19" standard mounting design is suitable for installing into rack or frame. It is made of metal and could splice and distribute fiber; It neither needs take the whole box down nor needs take down the top cover for operation and maintenance.



19" standard mounting with static electric plastic sprayed, nice appearance;
Can be used for ribbon & bunch fiber cables;
Could install FC, SC, ST or FC (duplex) adapter;
Flexible adapter panel is used, making the box more universal for different types of adapters and greatly increase the exchangeability;
Clear fiber route, pigtails could be coiled and stored on the tray;
Symmetrical side panels, unique design of inlaid structure for fibers, which makes the inlet of fibers more flexible and convenient;
The depth of installation could be adjusted, and installation and maintenance will be flexible, convenient and universal
Steel core fixed device could be provided according to users' requirement
Its capacity is up to 96 fibers

Item	Capacity	Size	Remark
FOD-S1A-12C	12 CORE	486×270×44.5	09H4-C1 splice tray
FOD-S1A-24C	24 CORE	486×270×67	09H4-C1 splice tray
FOD-S1A-48C	48 CORE	486×270×128	09H4-C1 splice tray
FOD-S1A-72C	72 CORE	486×270×182	09H4-C1 splice tray
FOD-S1A-96C	96 CORE	486×270×240	09H4-C1 splice tray
