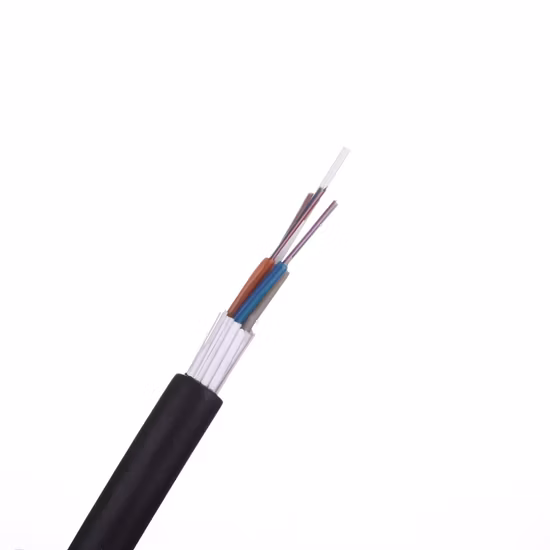

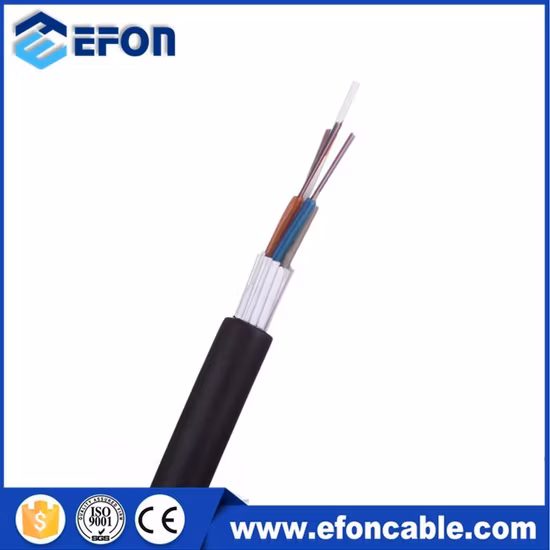

Aerial & Underground GYFTY Single Mode Fiber Optic Cable

Basic Info

Model NO.	GYFTY
Core	Multicore
Certification	CE, ISO9001
Brand	Jinlong
Sheath Material	PE/HDPE/Lzsh
Place of Origin	Zhejiang, China (Mainland)
Operating Temperature	-40~+60
Central Strength	FRP
Model Number	GYFTY
Water Blacking Material	Water Blocking Tape
Certificate	ISO9001 and CE
Outer Jacket	PE
Optic Fiber Type	Sm or Mm
Number of Conductors	>10,2 to 288
Color	Black
Transport Package	Packed on Fumigated Iron-Wooden
Specification	CE ISO9001
Trademark	jinlong
Origin	China Zhejiang
HS Code	8544700000
Production Capacity	500 Kilometer/Kilometers Per Week

Product Description

Aerial & Underground GYFTY Single Mode Fiber Optic Cable

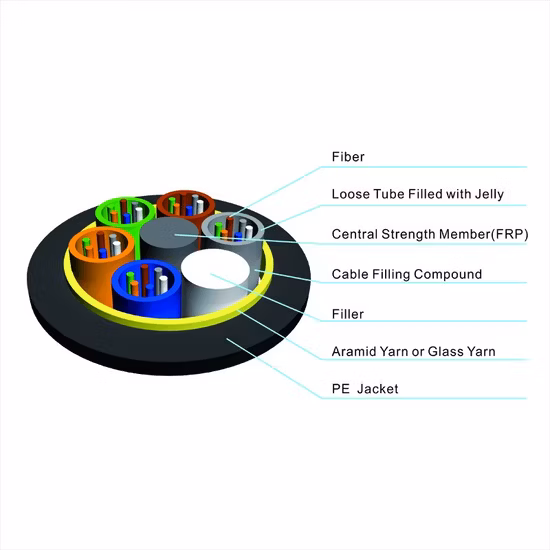

Packaging & DeliveryPackaging Details: Wooden Drum for long term shippingDelivery Detail: 15~20 DaysSpecifications1)Cores: As per buyer's request2)water block tape3) Non-metallic structure4)OEM order is welcomeGYFTYNonmetal Strength member, loose tube type, gelly filled, flame retardation polyethylene(PE) sheath, outer door optical fiber cable for telecommunicationDescriptionThe fibers, 250µ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.FeaturesGood mechanical and temperature performanceHigh strength loose tube that is hydrolysis resistantSpecial tube filling compound ensure a critical protection of fiberCrush resistance and flexibilityThe following measures are taken to ensure the cable watertight:Single Fiber Reinforced Plastic as the central strength memberLoose tube filling compound100% cable core fillingTechnical characteristics:The unique fiber excess length control method provides the cable with excellent mechanical and environmental propertiesVery strict material and manufacturing control guarantees the cable can work stably for more than 30 years.Special jelly filled in the loose tube provides the fibers with critical protectionTotal cross-section water-resistant structure makes cable have excellent properties of moisture resistanceThe central member adopted high young's modulus FRP member.The outer PE sheath provides the cable with radial resistant, moisture-proof and flame retardation propertiesThe cable use all dielectric non-mental structure, light in weight, easily to lay, excellent anti-electric-magnetic properties, Suitable for environment with high electric field strength in the Power communication system and the area where frequent thunder happens

Technical Parameter:
Fiber	Cable	Cable net	Min. bending		Min. tensile		Min. crush
count	dia.(mm)	weight(Kg/km)	radius(mm)		strength(N)		pressure(N/100mm)
			Static state	Dynamic	Short term	Long term	Short term	Long
				state				term
2-42	11.5	106	120	240	1500	600	1000	300
44-48	11.9	115	120	240	1500	600	1000	300
50-56	11.9	112	120	240	1500	600	1000	300
58-84	12.9	134	130	260	1500	600	1000	300
86-96	13.7	155	140	280	1500	600	1000	300
98-108	14.5	179	150	300	1500	600	1000	300
110-120	15.3	204	160	320	1600	600	1000	300
122-132	16.1	232	170	340	1800	600	1000	300
134-144	16.9	262	170	340	1900	600	1000	300
