Gyxts Central Loose Tube Outdoor Optical Cable

Basic Info

Model NO.	GYXTS
Brand	HNK or OEM
Sheath Material	Black PE
Length	According to Requirement
Fiber Cores	According to Requirement

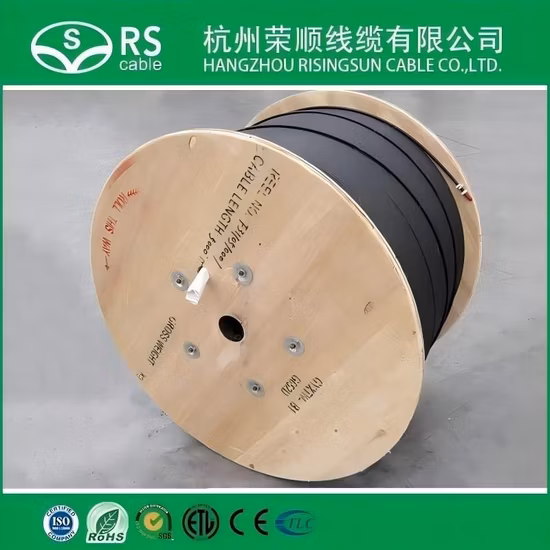

Transport Package	Wooden Wheel
Specification	RoHS
Trademark	HNK or OEM
Origin	Shenzhen, China
HS Code	85447000
Production Capacity	1000000m/Month

Product Description

Central Loose Tube Outdoor Optical Cable - GYXTS
( Non Steel Wires Armored Type)

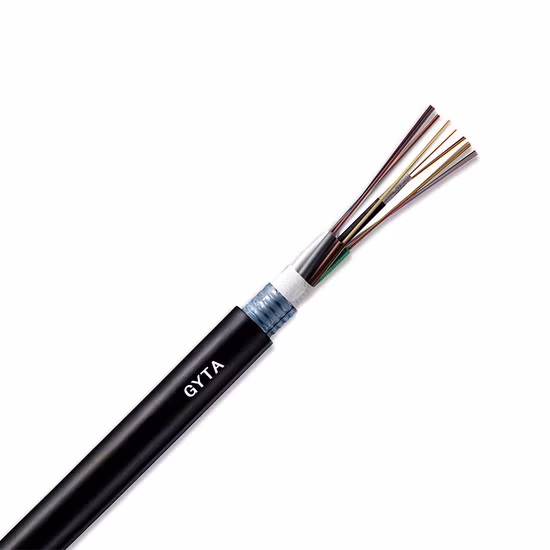

These cables are constructed with a central Loose tube filled with water blocking jelly, waterblocking tape over the loose tube, a corrugated steel armouring with in the outer PE sheathgive this cable excellent tensile strength, mechanical and environmental protection. They have small diameter, light weight and installation friendly since they come in a single tubewith loose tube fiber count up to 12 fibers. Their compact construction protect the loose tubefrom shrinking, the armour makes it crush, rodent and impact resistant, the water proofing tapeand jelly protects it from water and moisture, the outer PE sheath gives it ultraviolet protection. This cable is suitable for outdoor distribution through ducts and conduits. They come in largerdelivery length, so can also be used in long distance communication system, service drop cables,building interconnections.

Complied With Or Exceeds Standard. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4 . ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics

ITEM	Value
Max. Tensile Load (Short Term)	1000N
Max. Tensile Load (Long Term)	600N
Max. Crush Load (Short Term)	600N/100mm
Max Crush Load (Long Term)	300N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Sheath Material	Standard: PE Optional: LSZH or other

ANSI/TIA/EIA-598-B Standard Fiber Color CodeFiber Number Fiber Color Fiber Number Fiber Color Fiber 1 Blue Fiber 7 Red Fiber 2 Orange Fiber 8 Black Fiber 3 Green Fiber 9 Yellow Fiber 4 Brown Fiber 10 Violet Fiber 5 Slate Fiber 11 Rose Fiber 6 White Fiber 12 AquaFiber 13 and higher The color code is repeated with added black stripe or dashNote: Fiber Tube color will be followed with same order.

Optical Characteristics Of all the differences between multimode & singlemode fiber, the most fundamental differences are the size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer). The fiber's attenuation and bandwidth are also dependent on wavelength. Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

Fiber Type	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Ordering InformationPart Number: OC-XX-ABCDCL Ordering Guide

XX	A	B	C	CL
Cable Type	Jacket	Fiber/Tube	Fiber Type(FXX)	Jacket Color(CL)
GYXTS	1=PVC2=LSZH3=PE	06=01 Fiber/T...12=12 Fiber/T	OM1=62.5/125 OM1,OM2=50/125 OM2OM3=50/125 OM3,OM4=50/125 OM4G652D=9/125 G652D,G657A=9/125 G657A	As noted in Color code chart

Ordering Sample

Part Number	Description
OC-GYXTS-312G652DBK	12 Cores Singlemode G652D GYXTS Fiber Optic Cable, 12 Fiber/Tube, PE Jacket, Black Color.
